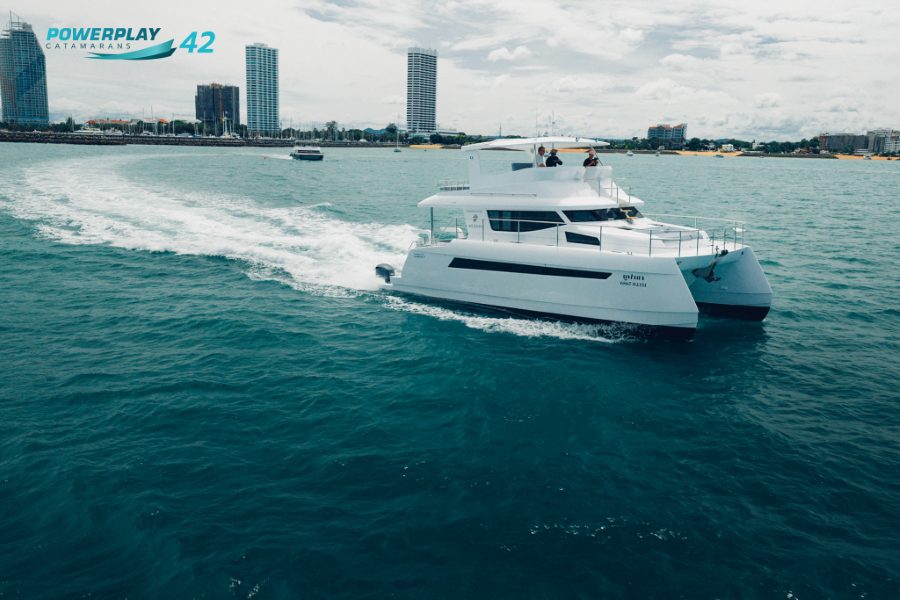

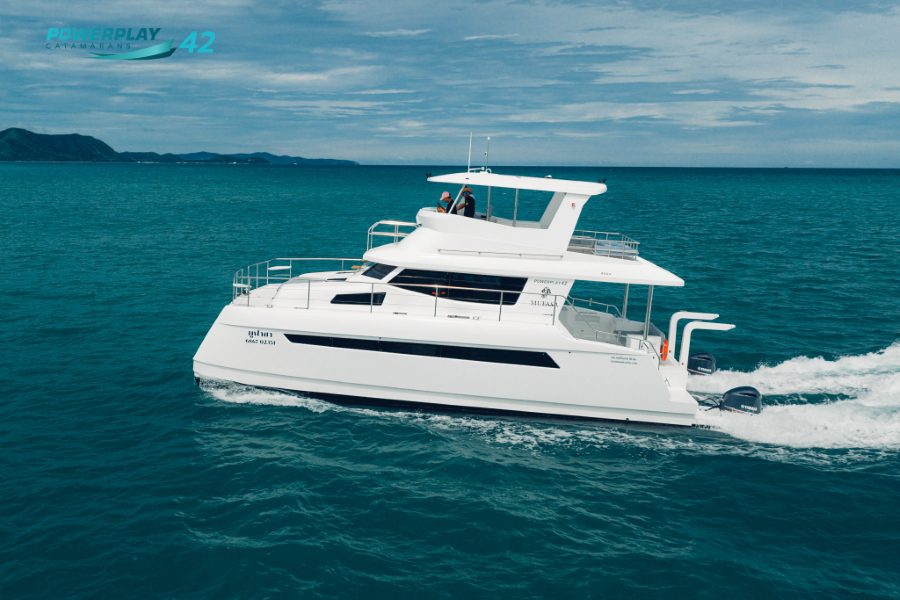

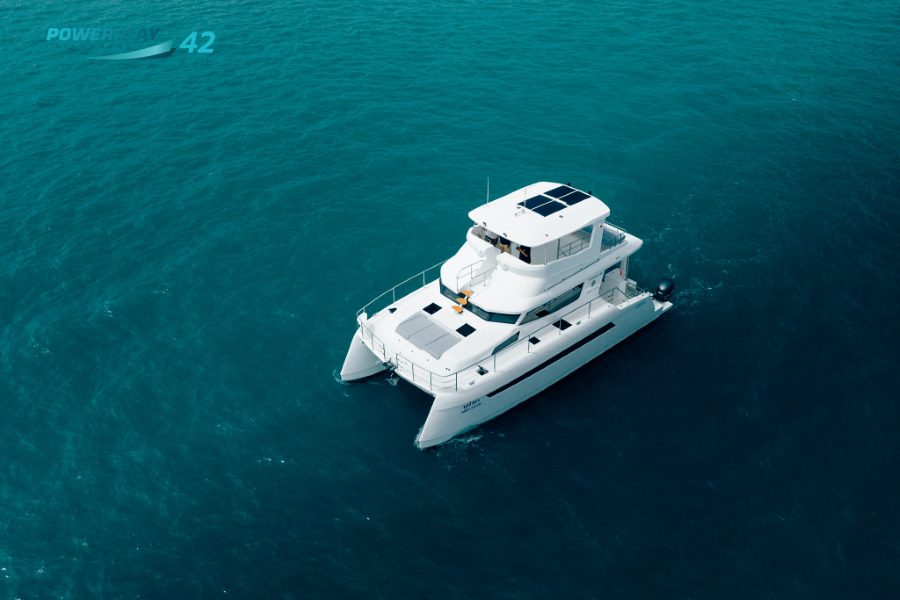

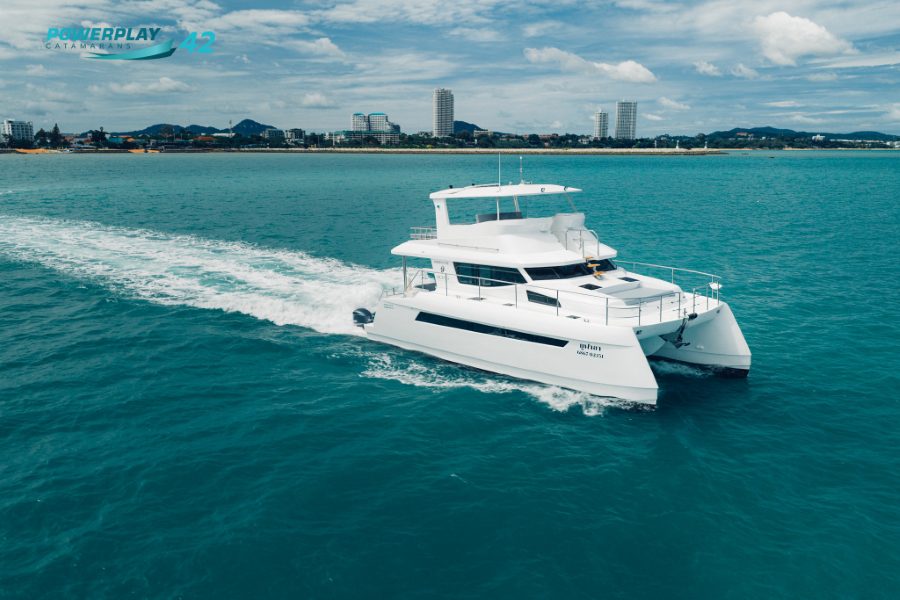

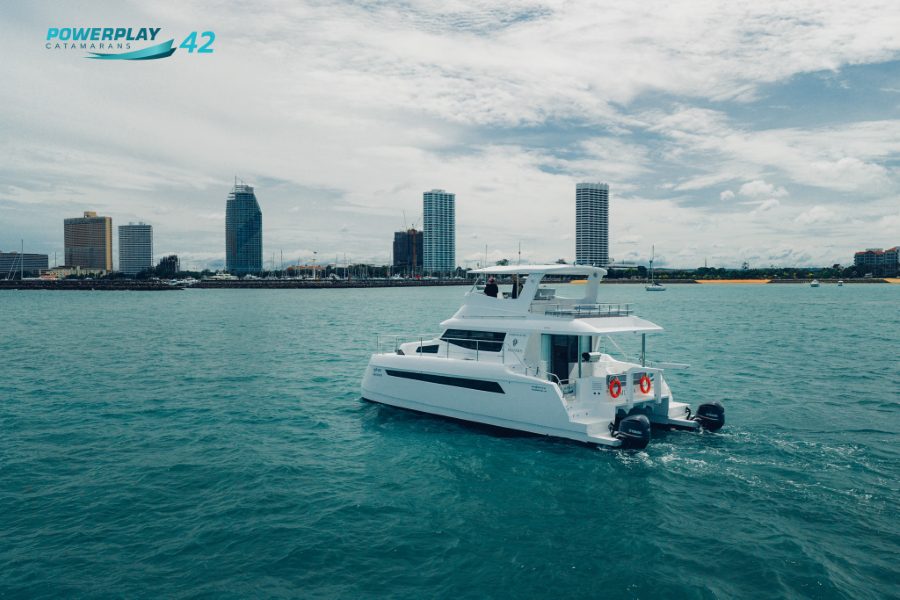

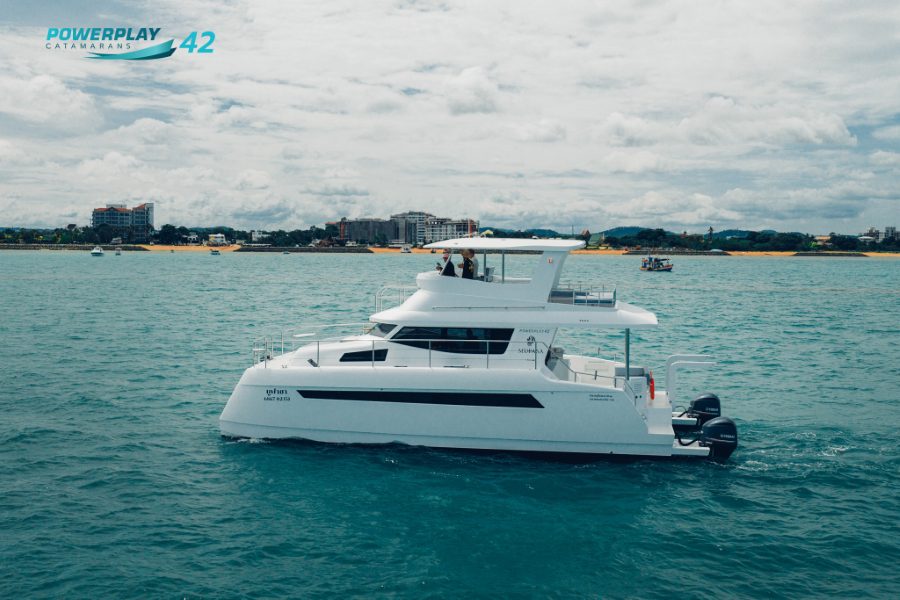

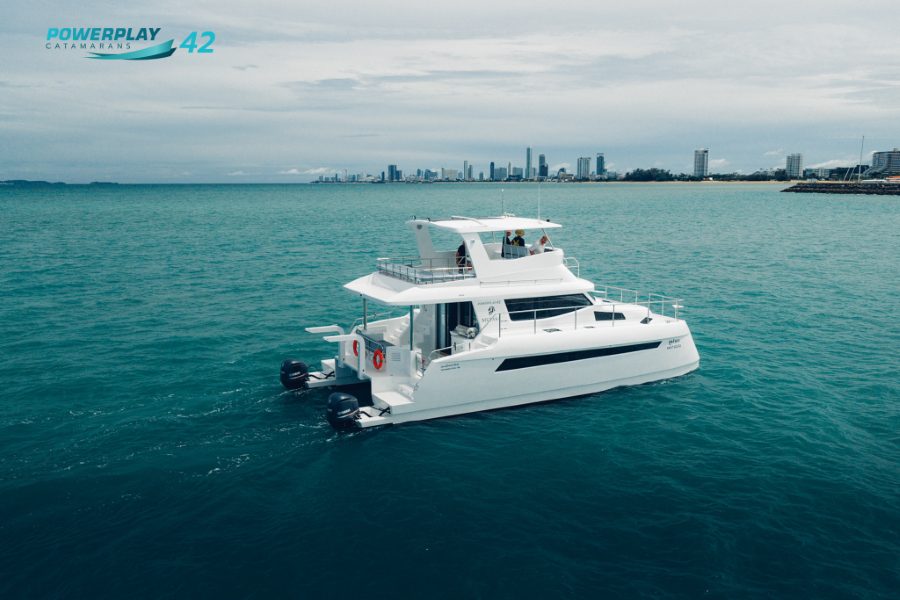

Powerplay 42 Charter Catamaran

Length Overall: 12.00 m
LOA with Pod: 12.85 m
Beam Overall: 6.050 m
Draft (Light Ship): 650 mm
Bridge Deck Clearance (Light Ship): 600 mm
Air Draft (from DWL): 6.600 m
Displacement (Light Ship): 11,000 kg
Full Load Displacement: 15,000 kg
Fuel Capacity: 2 x 600L = 1,200L
Water Capacity: 2 x 300L = 600L
Holding Tank Capacity: 2 x 180L = 360L
Fuel Weight (Full Tanks): approx. 239 kg
Engine Configuration: 2 x Outboards (Owner supplied)
Top Speed: TBA
Cruise Speed: TBA

List Price (Ex-Factory Thailand): USD 450,000
Engine Choices: POA
Total Price: USD 488,000 plus engines, excluding local VAT

Wall Finish: Light fairing primer and gloss topcoat roller finish, or 3M wrap
Doors: Romana oak timber door frames with Formica/wrap door panels
Floors: Sprayed non-slip surface
Cabinet Doors: Formica/wrap with timber frames

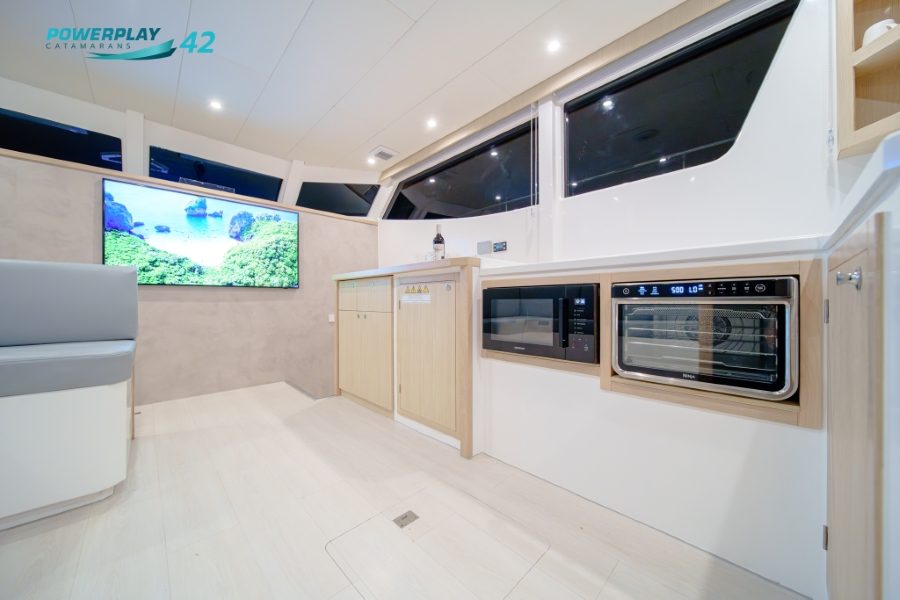

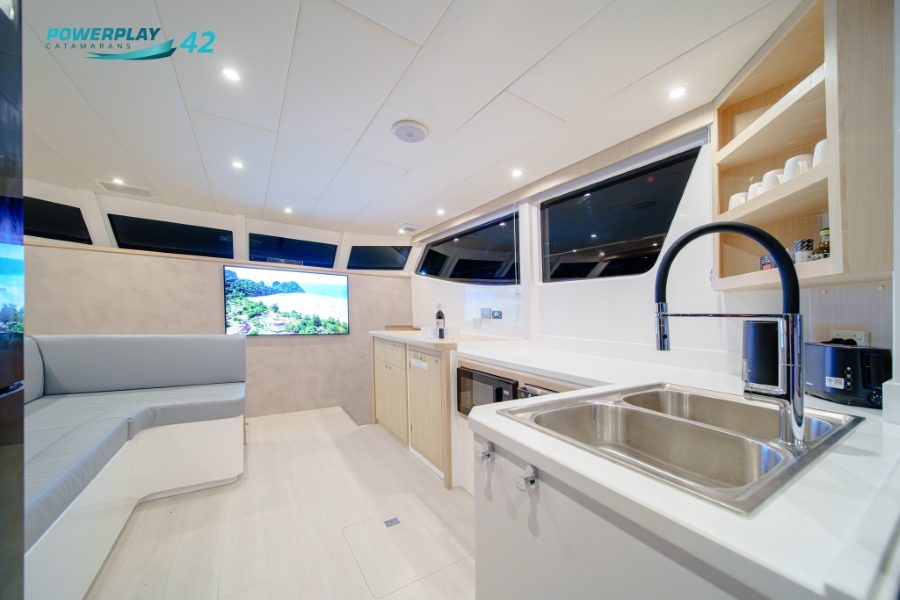

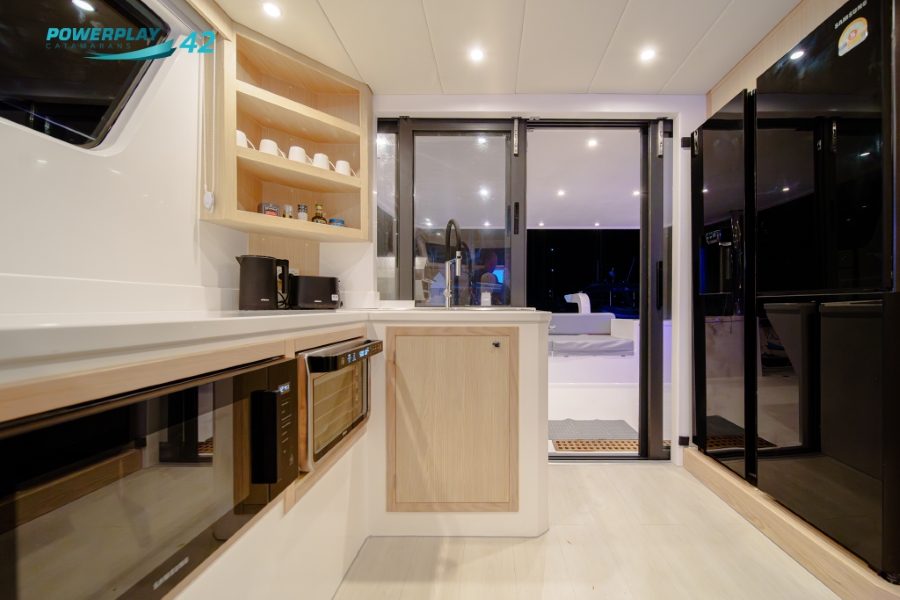

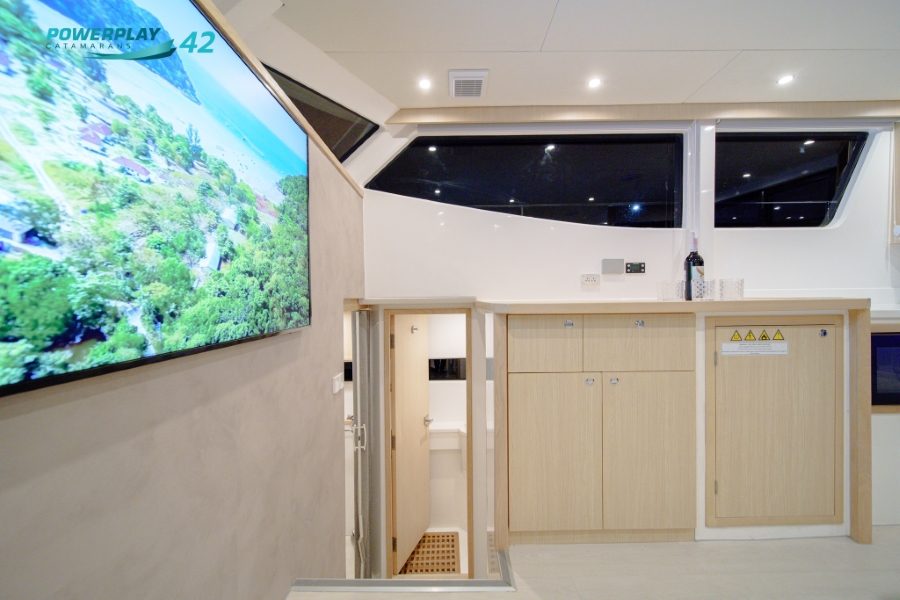

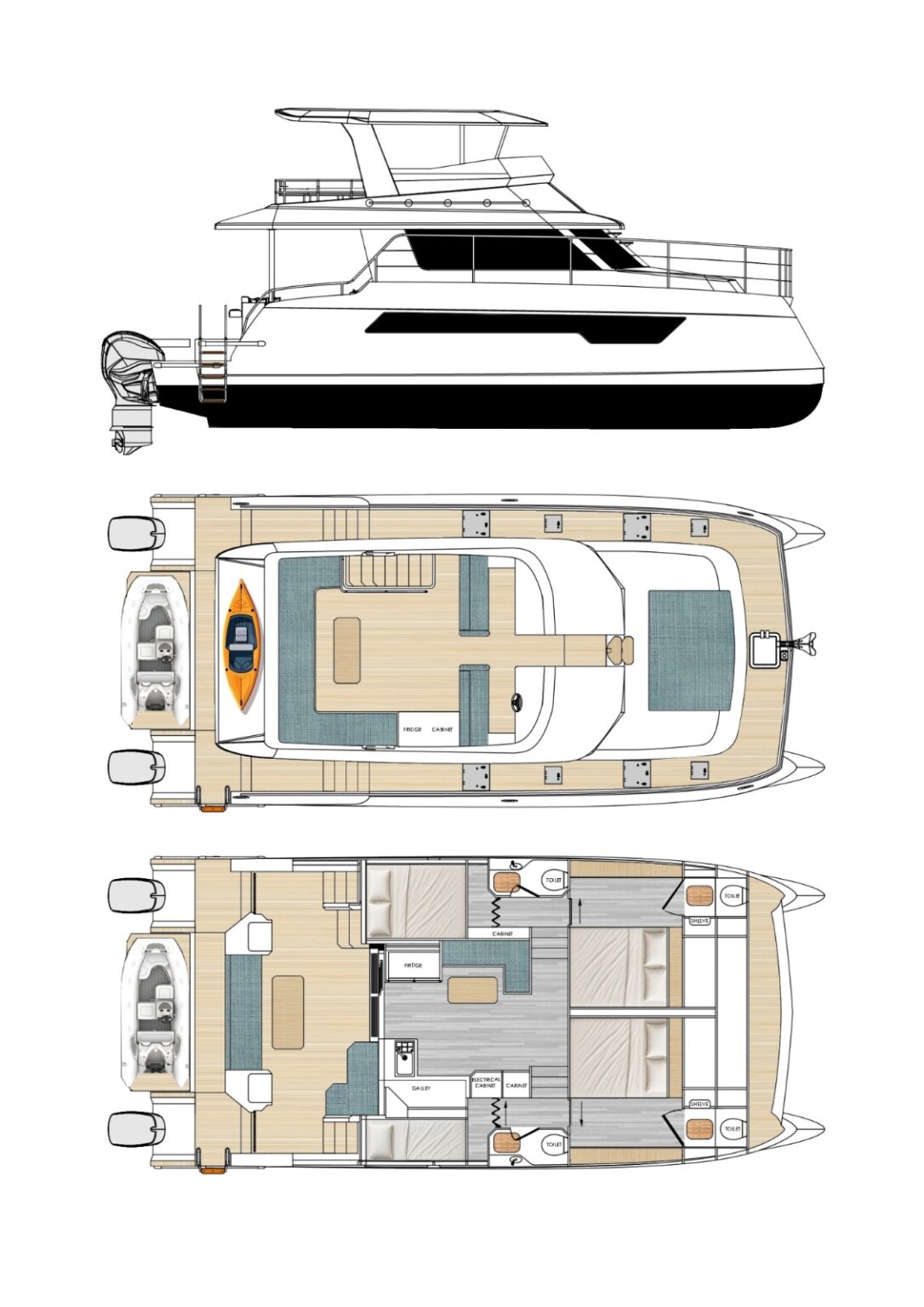

Salon Layout: Combined salon and galley
Headliner: White vinyl
Cabinet Finish: Formica/wrap
Benchtops: White acrylic
Fridge/Freezer: Owner supply – LG with double doors, icemaker and chilled water
Microwave: Owner supply
Sink: Stainless steel

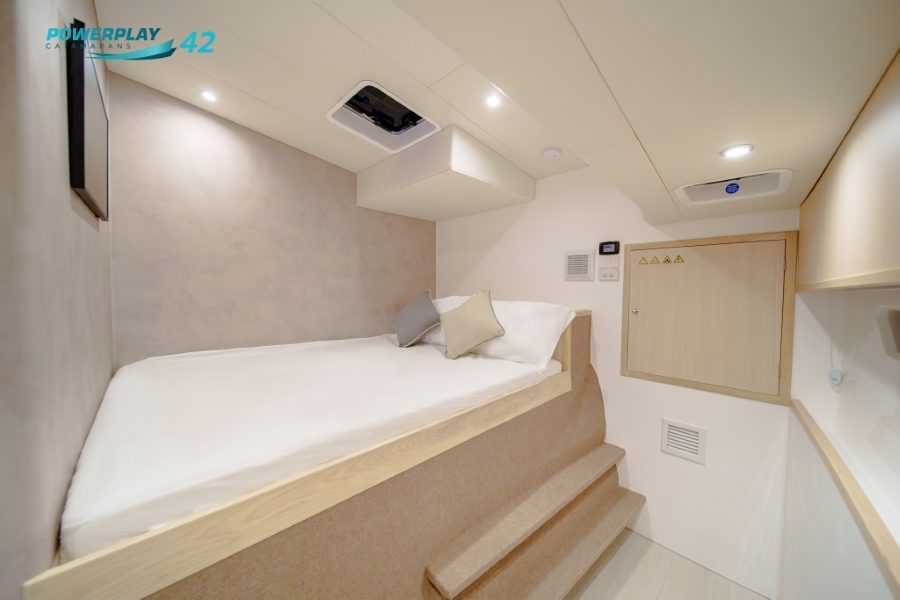

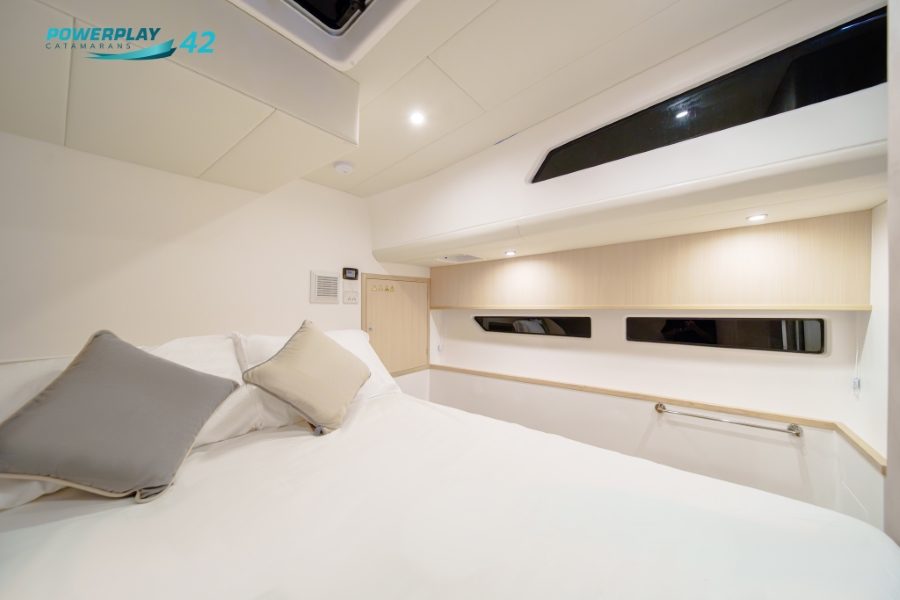

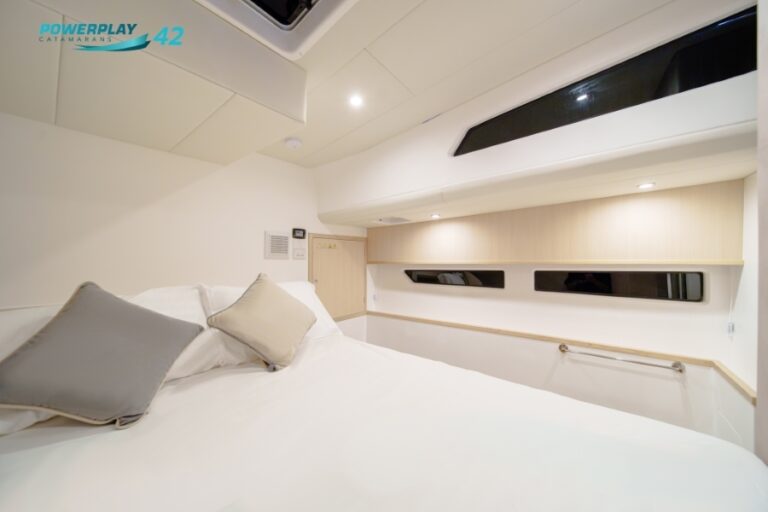

Bed: Queen size / Double
Finish: Light fairing primer and gloss topcoat roller
Mattress: 100mm medium foam with cover

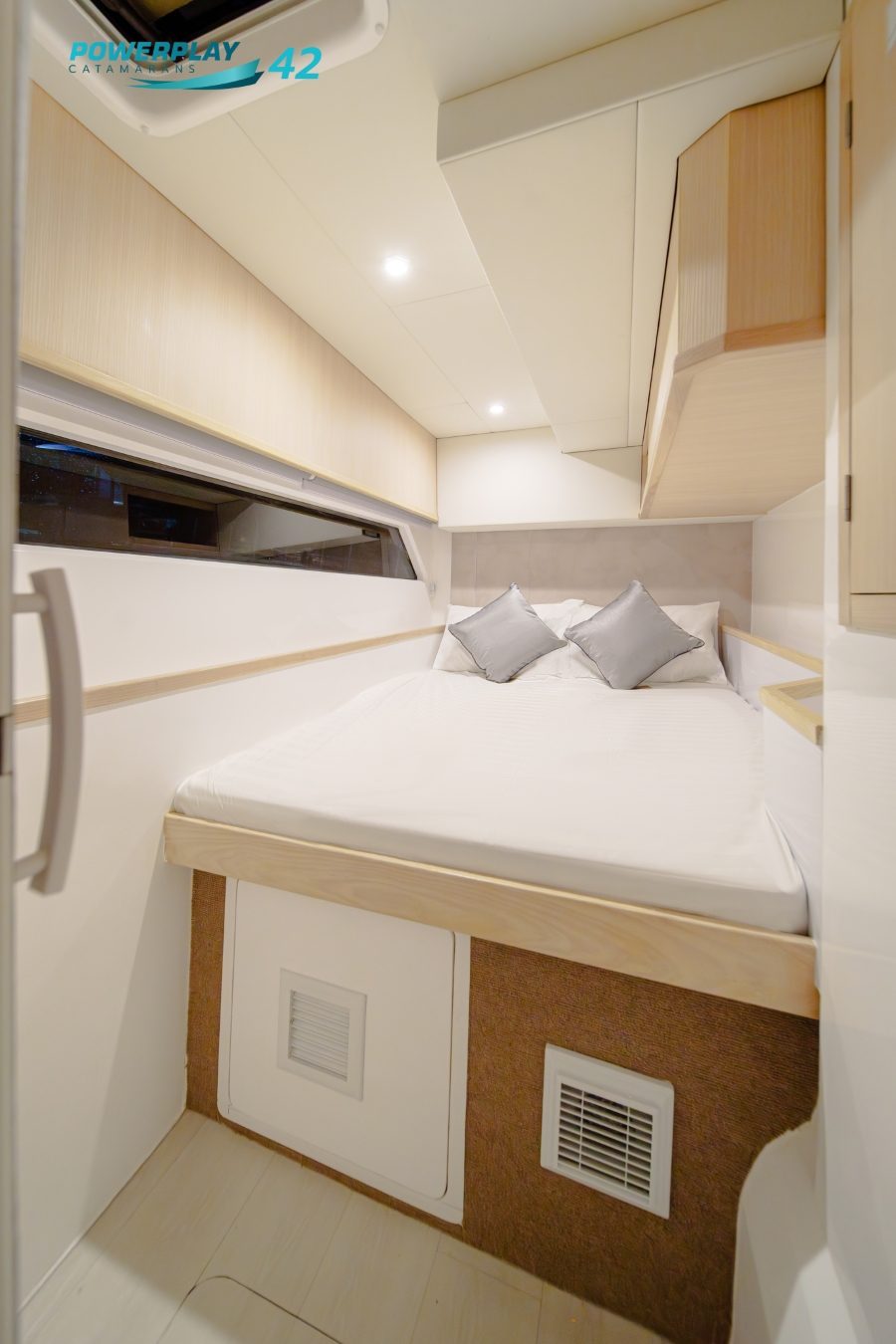

Bed: Queen size / Double
Finish: Light fairing primer and gloss topcoat roller
Mattress: 100mm medium foam with cover

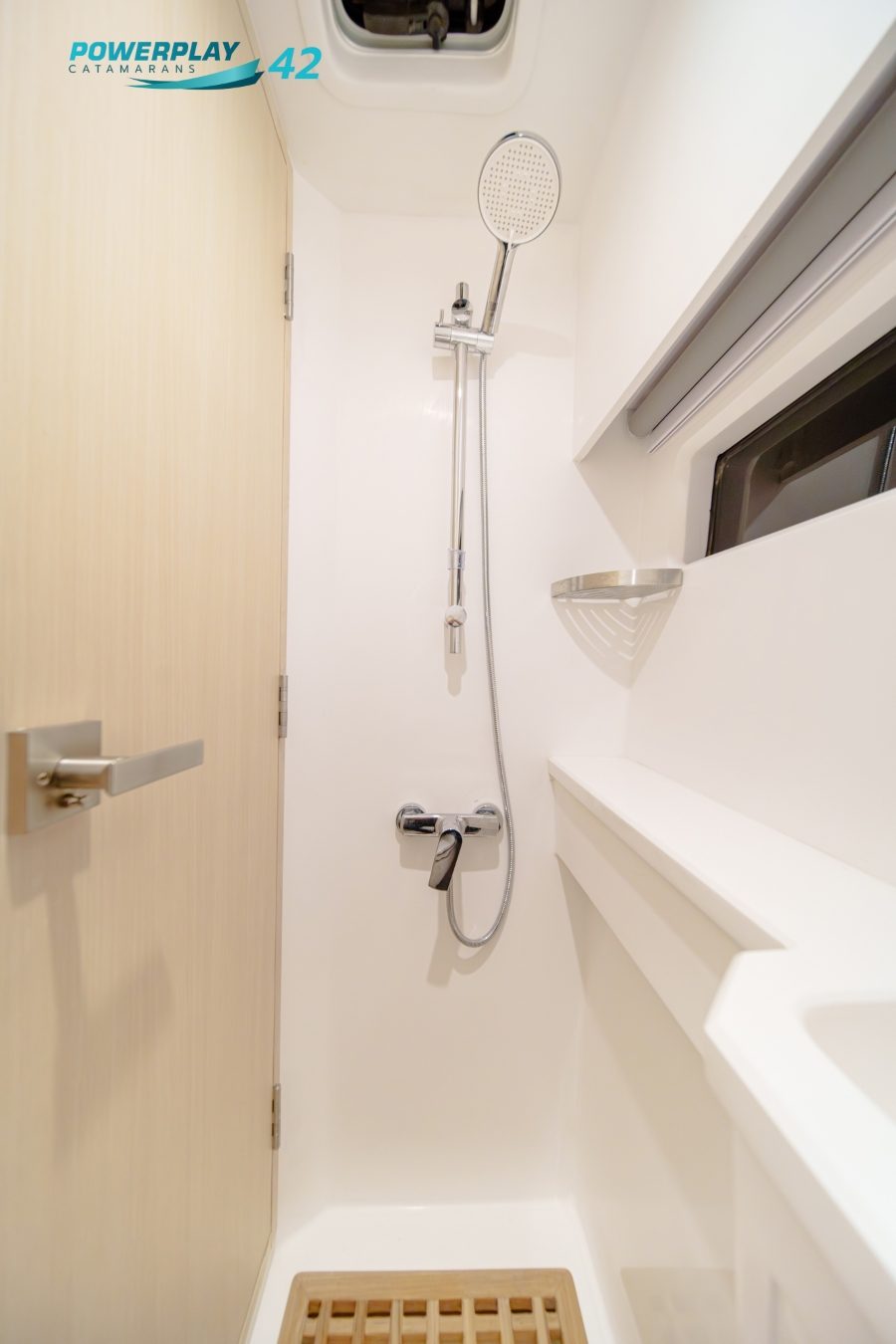

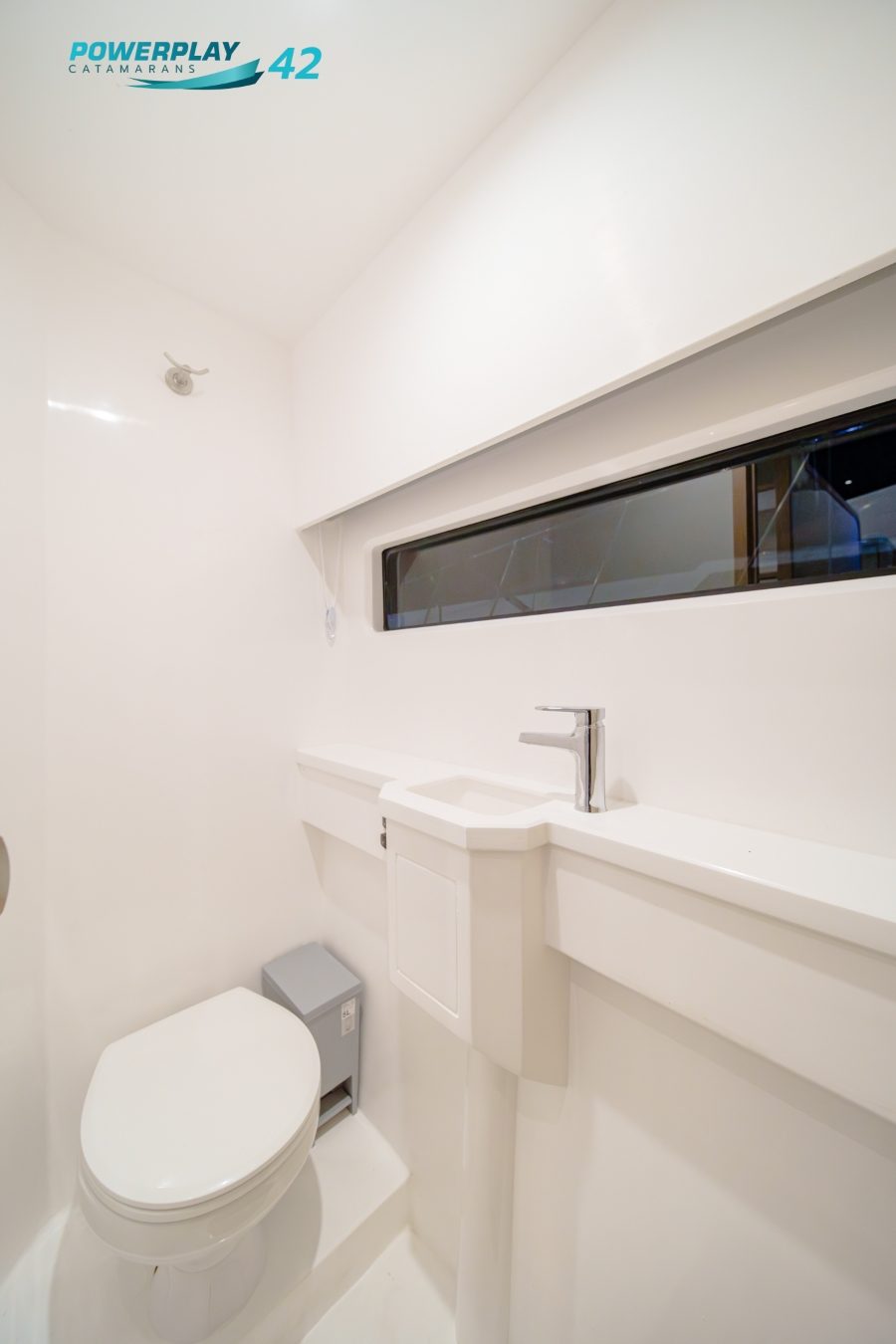

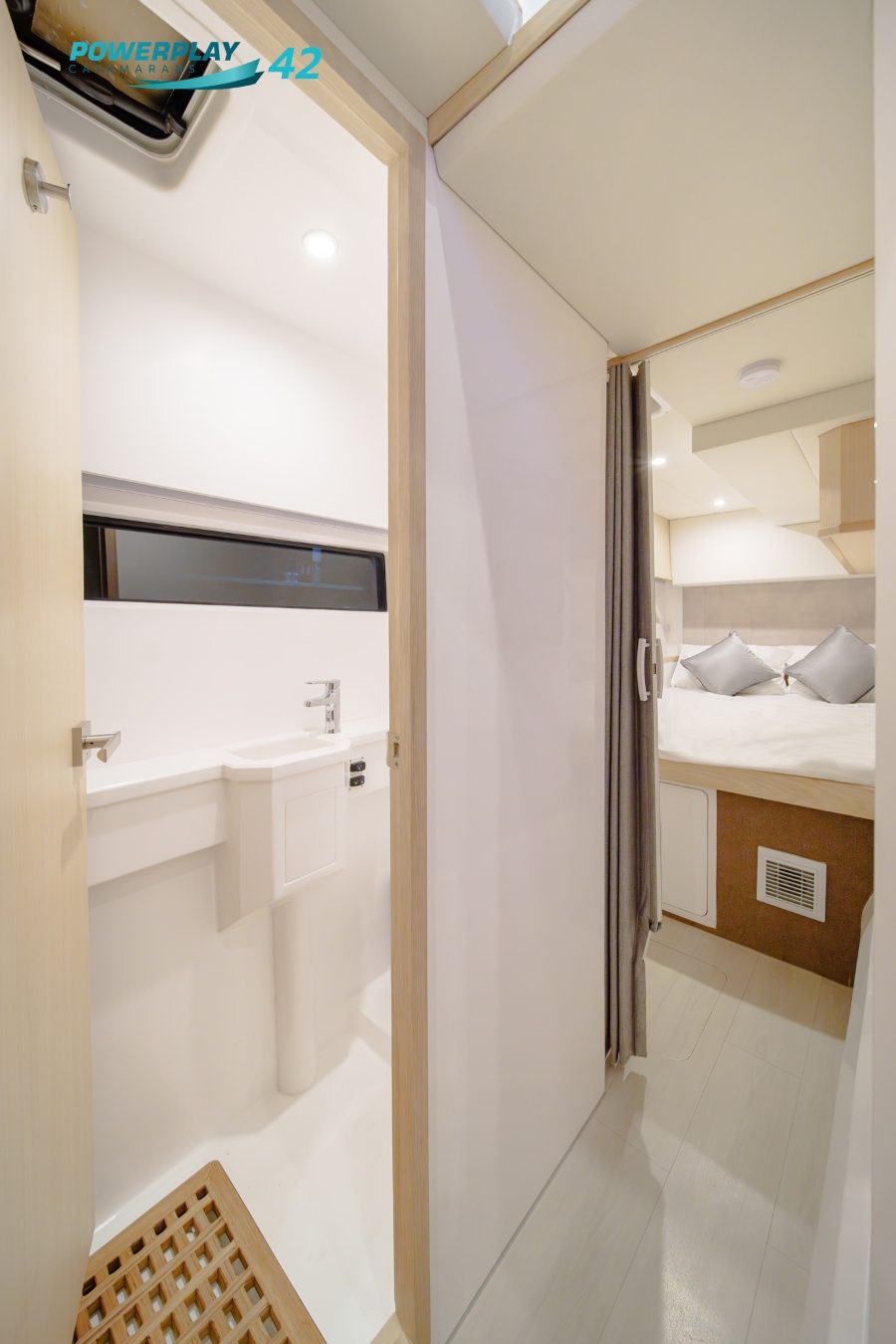

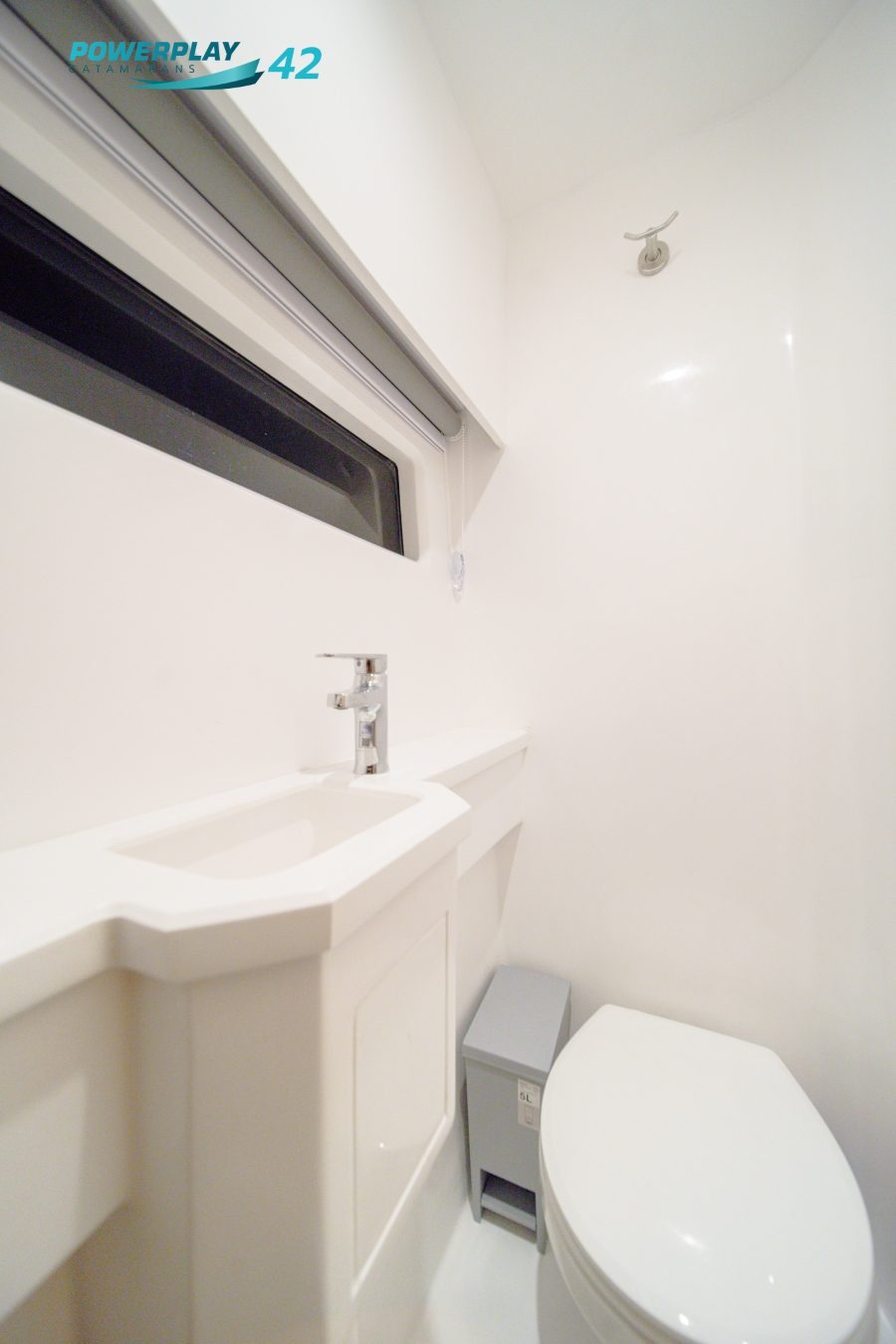

Shower & Basin: Wet head with hot/cold mixer, sump to holding tank
Toilets: 2 x TMC Luxury low-profile toilets
Finish: White gelcoat
Grate: Teak seating grate

Engines: 2 x Outboard engines, 250–450 hp (owner supplied)
Steering: Electric steering (supplied with engines)
Fuel Tanks: 2 x 600L aluminum petrol tanks
Diesel Tank: 1 x 90L standard, optional second tank on port side

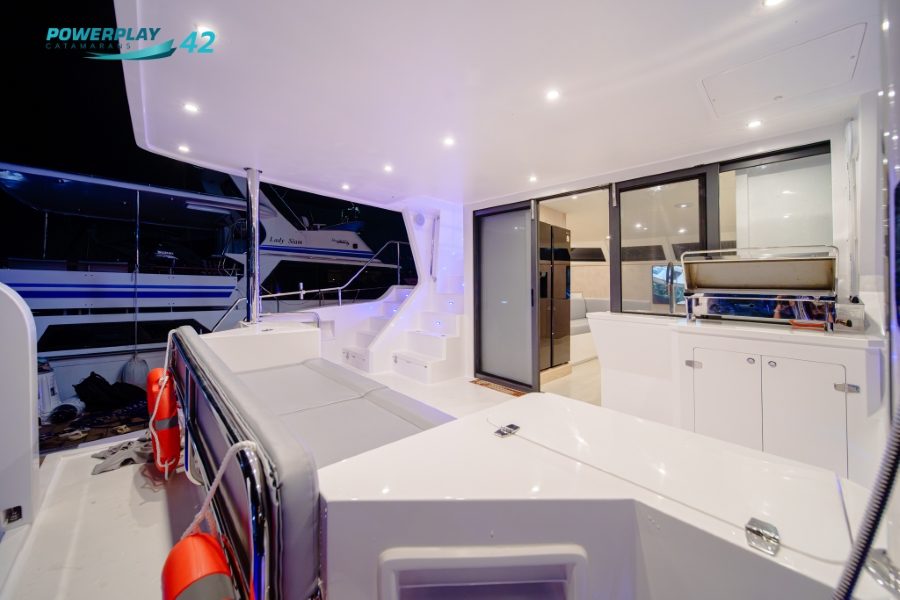

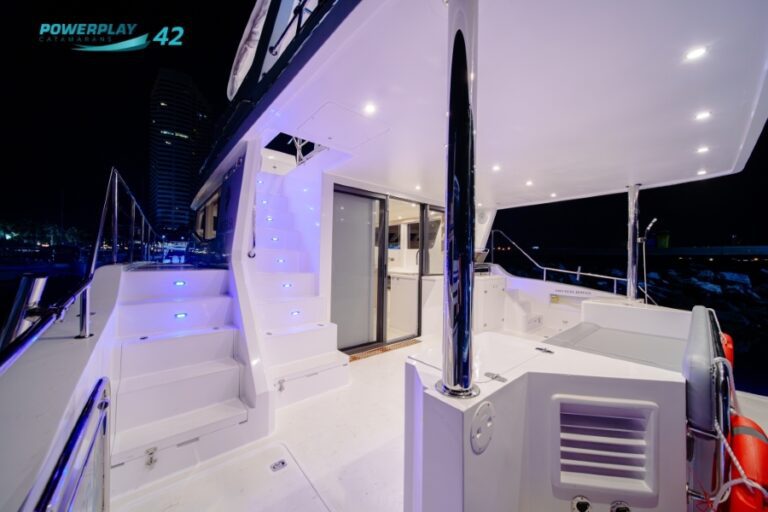

Deck & Fittings

Deck Finish: White non-slip painted

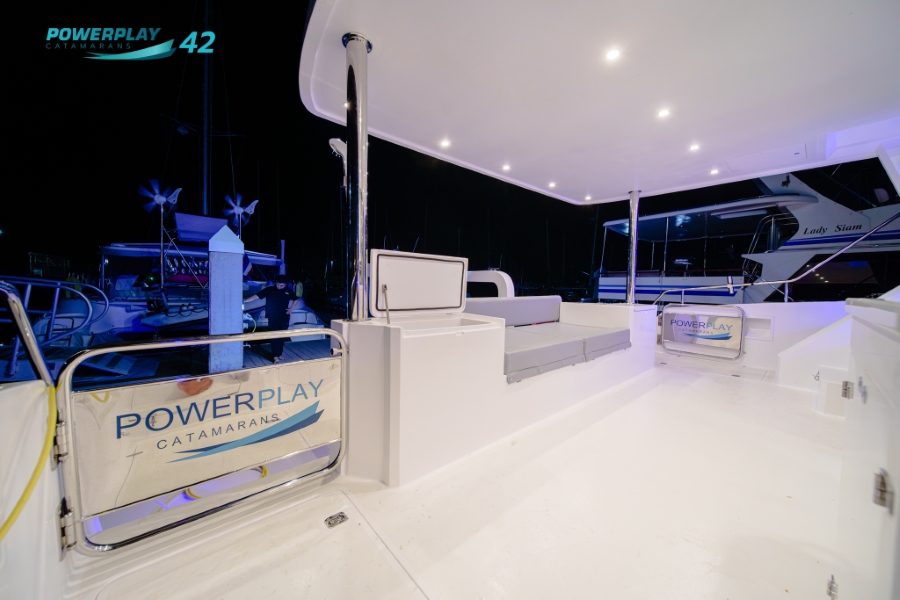

Seating: Full-width aft settee with Sunbrella fabric
Extras: 2 x Ice chests, BBQ power connection, transom shower with hot and cold water
Doors & Windows: Sliding aluminum salon window and door
Deck Drain: Sump instead of step at door
Davits: Composite with lifting tackle, suited for 3m tender with 15hp engine (max 200kg load)

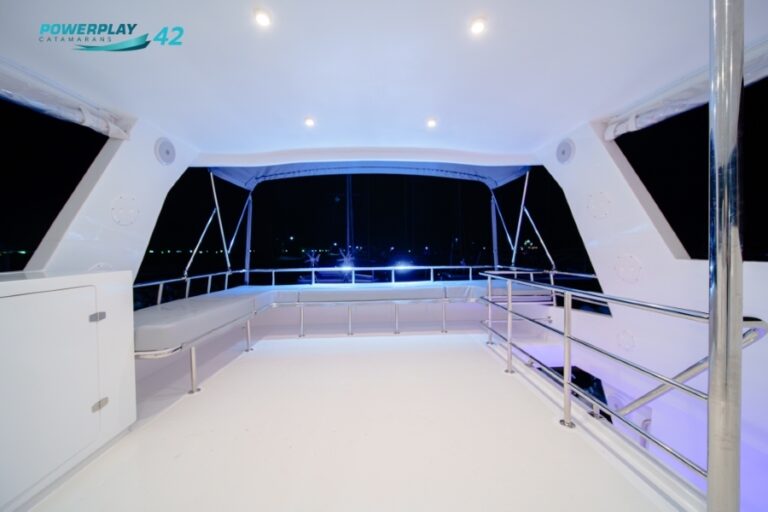

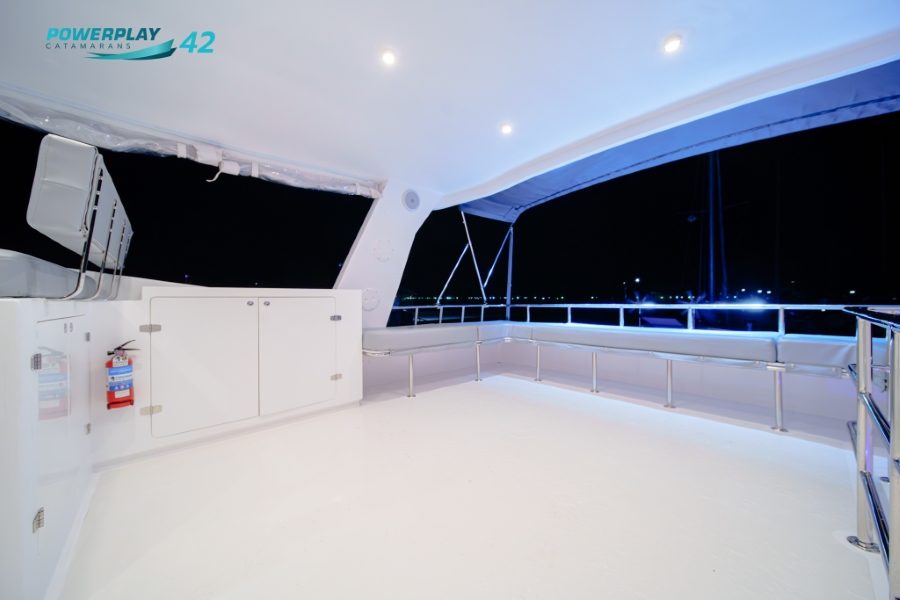

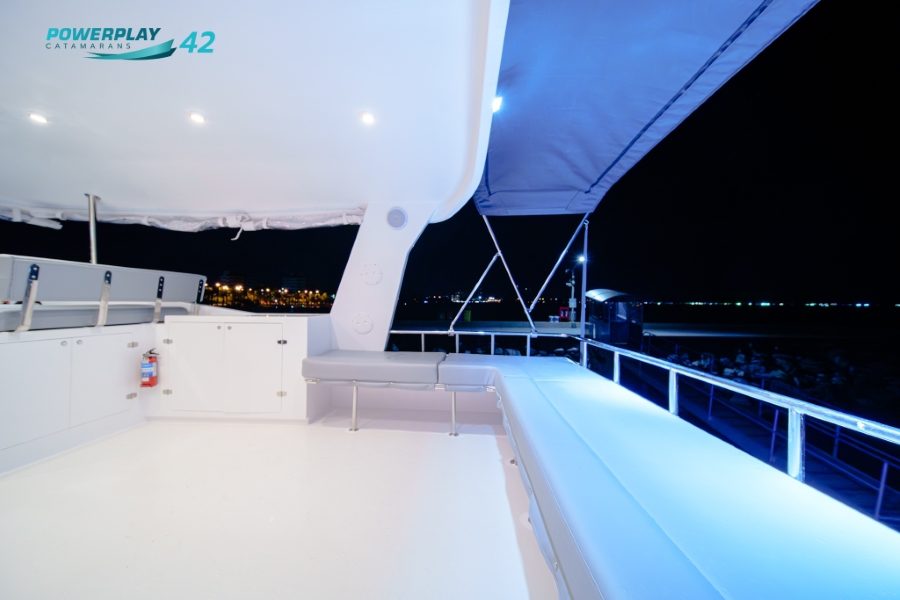

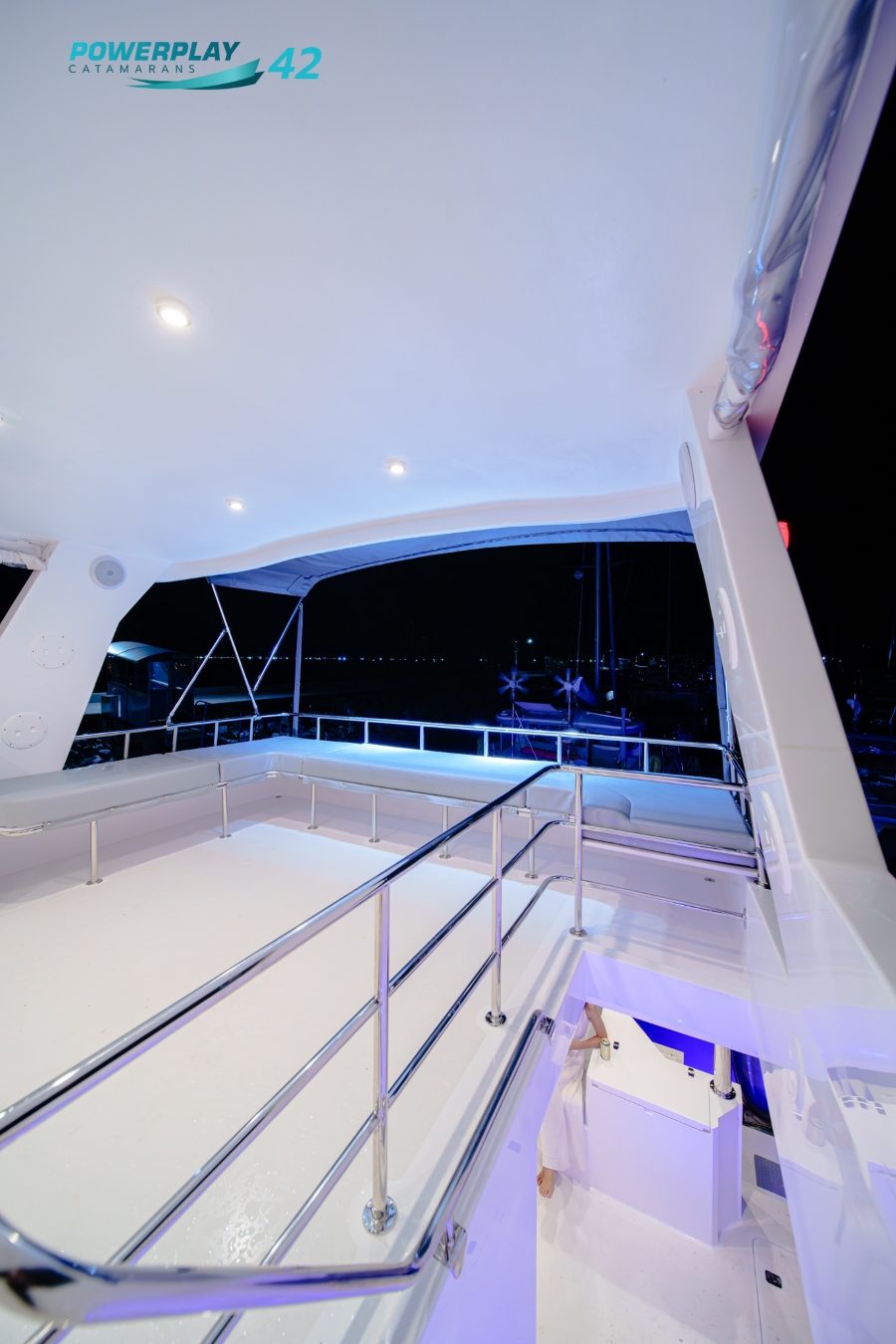

Flybridge: Open with 4 stainless steel supports and composite Targa arms
Canopy: Lightweight FRP hard top

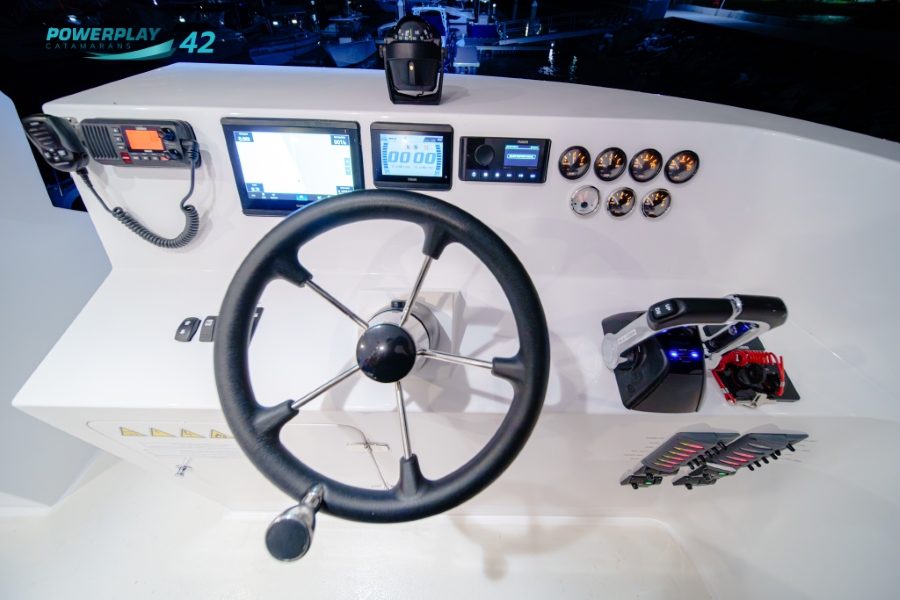

Helm Station: Starboard side console
Access: Stairs from foredeck to flybridge
Seating: Sunbrella fabric
Electronics: Ray63 VHF, Garmin 9” plotter (or equivalent), steering wheel, horn
Power: AC panels, DC panels, USB and standard power points

House Batteries: 4 x Mastervolt AGM 12V 220Ah (total 800Ah)
Start Batteries: 2 x Mastervolt AGM 130Ah
Genset: Provision made for WhisperGen 8kVA (27A)
DC System: 12V BEP switch panels
AC System: 220V 50Hz BEP switch panels
Inverter/Charger: Mastervolt Mass Combi 12/3000–100 (optional)
Air Conditioning: Pure Mind Reverse Cycle 36,000 BTU
Lighting: 18 interior lights, 8 cockpit lights, 4 deck floods (aft and foredeck), LED nav lights
Sockets: 8 x electrical power points
Underwater Lights: Optional (4 to 6 units)
Shore Power: 1 x 32A inlet, port side, with isolators and RCDs
Wiring: AS 3000 marine-grade tinned wire (Tricab)

Plumbing Type: John Guest quick-connect system
Freshwater Pumps: 2 x 12V Whale pressure pumps
Hot Water: 1 x Quick 60L (220V)
Holding Tanks: 2 x 180L with manual shut-offs, one per hull with deck pump-out
Bilge Pumps: 2 x 750GPH per hull, 4 x electric auto/manual with float switches and non-return valves
Engine Pod Bilge: 2 x Rule 500GPH
Toilets: 2 x TMC Luxury low-profile

Whisper Gen 8kVA: USD 21,500
Underwater Lights (x6): USD 3,600
Cookout BBQ (Classic or Teppanyaki): USD 1,800
CZone System + Solar + Lithium Upgrade: USD 55,750
Includes: 4 x 250W solar panels, 1 x regulator, 1 x Mass Combi 24/3500–100, 2 x Mastervolt MLI Ultra 24/6000 Li-ion batteries
Spectra Newport 400 Watermaker (12V): 63L/hr with Zion system – USD 19,750
Domestic Refrigerator: POA
Interior Finish Upgrade: POA
Chain Counter: POA
Flybridge Clears: POA
Sound System: POA
Engine Options: Mercury 250, Yamaha 425–600hp (with foils), Cox diesel 300–350hp, Yanmar 370 with Bravo stern drive – POA

Alternative Arrangement: 3-cabin layout with king-size master cabin and private bathroom (POA)
